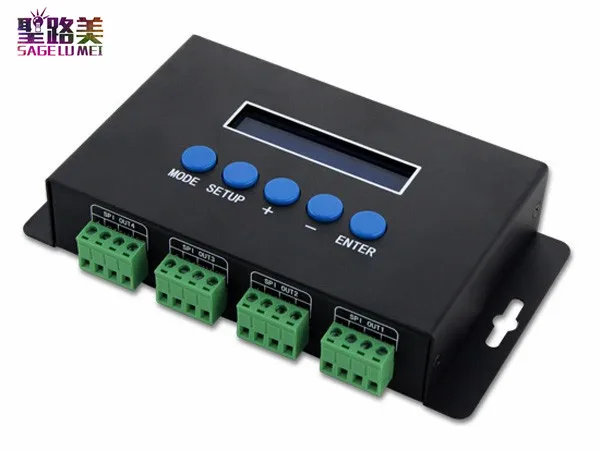

BC 204 DC5V 24V Artnet to SPI/DMX pixel light controller;Eternet protocol input;680pixels*4CH+ One port(1X512 Channels) output-in RGB Controlers from Lights & Lighting

Scroll to product details, material & care and sizing

$ 122.91

Add to cart Add to wishlist

Term:
spycam wifi, artnet dmx, adapter rs485, Wholesale camera spy wifi, Wholesale artnet dmx, Wholesale 40key, Wholesale 3528 rgb, Wholesale artnet, Wholesale artnet spi, Wholesale free freestyle, Wholesale alpha led,

BC-204 DC5V-24V Artnet to SPI/DMX pixel light controller;Eternet protocol input;680pixels*4CH+ One port(1X512 Channels) output Details & Specification :

Item Specifications
Item Type RGB Controler
Power Source DC
Remote Distance 30m
Material ABS
Certification ce
Certification RoHS
Certification CCC
Brand Name SAGE LU MEI
Voltage 5-24V
Model Number Artnet-Spi controller
Applicable Lights RGB led strip lights
Connection Mode Artnet-spi
Oscillation frequency .
Controled Method Wifi Controller
Warranty 1 year
Max. Load Power .
Wattage .
Features Artnet-Spi controller
2m/3m/5m 3V AA controller Flexible Neon Light Glow...
US $ 4.5 / Price
16Million colors Wifi RGB / RGBW led controller sm...
US $ 11.88 / Price
DC12V-24V 6Ax3channel 18A RF Wireless Touch RGB co...
US $ 16.88 / Price
2pin 3pin 4pin 5pin LED Extension Cord Electric Wi...
US $ 4.99 / Price
1m/5m DC5V individually addressable ws2812b led st...
US $ 6 / Price
2pin 3pin 4pin 5pin led wire connector Male/female...
US $ 3.9 / Price
100pcs/lot 2pin 3pin 4pin 5pin RGB Connector Adapt...
US $ 8.5 / Price
AC110V-220V to DC12V Power Supply 10W 20W 30W 50W ...
US $ 6.38 / Price

BC-204;Artnet to SPI/DMX pixel light controller;Eternet protocol input;680pixels*4CH+ One port(1X512 Channels) output DC5V -24V

Product Description



aeProduct.getSubject()

Feature Function:

1. With LCD display and built-in WEB SERVER setting interface,easy operation

2. Support Ethernet DMX protocal ArtNet,can be expanded to other protocols.

3. Multi SPI(TTL) signal output, up to 5440 pixels control.

4.Output  DMX512 signal at the same time, convenient for the connection of different types LED lamp.

5. Support various LED driving IC, flexible control.

6. Support online firmware upgrade

7. Adopt DIP plug-in design for the easily-worn parts,Users can repair the damage caused by worng wiring or short circuit

8. Built-in test mode,using a networking interface with indicator light,work status is clear when at a glance.



Dimension:





Instruction of interface and ports:

Wiring instruction of SPI output:

To output LPD6803/LPD8806/P9813/WS2801 controlling signal, it requires at least three lines:

  DATA   6803/8806/9813/2801 DATA
  CLK   6803/8806/9813/2801 CLK
  GND   GND, connect with the chip GND



To output WS2811/TLS3001 controlling signal, it requires at least two lines:

  DATA   Ws2811/ TLS3001 DATA-CLK
  GND   GND, connect with the chip GND




aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

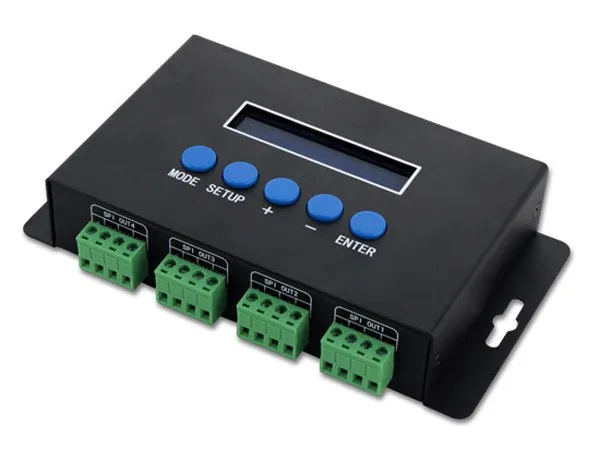

Product Picture
